Product Description

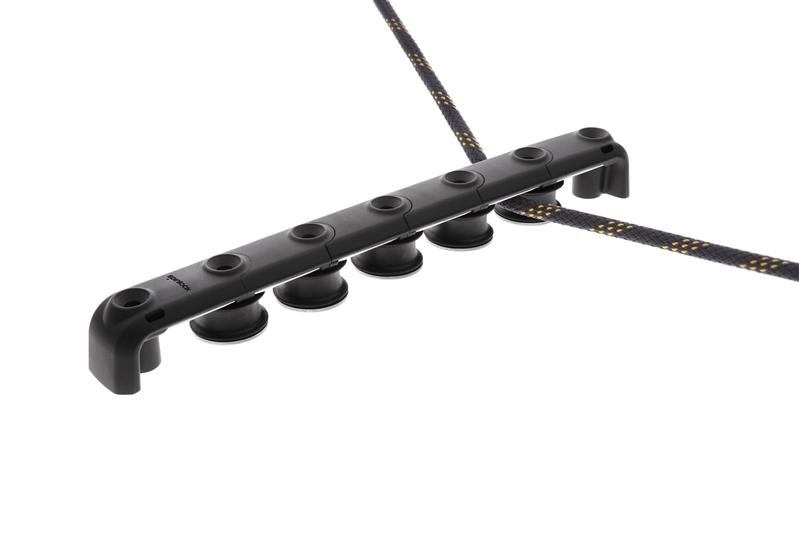

Spinlock T25 Deck Organizer w/ 5 Sheaves
Small boat organizer - 25mm sheaves
Symmetric or Asymmetric configurations - 2 to 6 sheaves
Fiber-reinforced construction
Stainless steel "wear" strip prevents local rope damage
Curves to follow the shape of the deck
Double stack with BE10/2 or /3 (see BE10 multiple range) for lowest cost stacked line solution
Specifications:
Sheave Diameter/Type - 25mm (1") composite
SWL per Sheave - 400kg (880lbs)
Total SWL per unit - No of sheaves x 200kg (440lbs)
Line Diameter - Up to 10mm (3/8")
Weight - 64g (2.2oz) for 2 sheave organizer 20g (0.7oz) per extra sheave
Fasteners - 2x M5 (3/16") CSK Head (not supplied)
